Elements of Computer Network

-

What are the Elements of Computer Network?



What is Communication?

Communication is a process of passing information from one person to another. It has its basic elements which are:
  1. Message Source
  2. Encoder/Decoder
  3. Channel
  4. Message Destination
These basic elements can be compared to demonstrate how networks operate.


1. Message Source

Message Source is the sender or origin if the message. In communication, a message is the information or data that is being transmitted from one point to another, it could be a text document, an image, a video, or any other form of data, while the source is the entity or device that initiates the communication. It is responsible for generating the message and starting the communication process. In summary, Message Source is the starting point of communication, responsible for creating and initiating the transmission of data or information in a computer network.


2. Encoder/Decoder

In networking, an encoder could refer to a device or process responsible for converting data from one format to another before transmission. For example, in the context of video streaming, an encoder might compress and encode video data into a specific format for efficient transmission over the network. On the receiving end, a decoder is responsible for reversing the encoding process. It interprets the received data and decodes it back into a format that can be understood or displayed by the receiving device or application.


3. Channel

In the context of computer networks, a channel refers to the medium through which data is transmitted from one point to another. It serves as a communication path between devices. Channels can be physical, such as cables or wireless links, or they can be logical, like a specific frequency in a multiplexed communication system.


4. Message Destination

Message Destination is the final recipient or the one who receives the message sent by the Message Source. In detail, it refers to the specific device or destination address to which a message or data packet is intended to be sent. It is a fundamental element of communication that helps ensure that information reaches the intended recipient within the network. The destination address is a unique identifier assigned to each device on the network, allowing data to be directed accurately to its intended destination.

Elements that make up a Computer Network:


1. Sender Device

Sender Devices are used to communicate with one another. is a component that initiates and transmits data to another device on the network. It could be a computer, smartphone, server, or any other device capable of generating and sending information across the network. The sender device is responsible for encoding and packaging data into a format that can be transmitted over the network, typically using communication protocols.


2. Medium

A Medium is how the devices are connected together. It refers to the physical or virtual pathway through which data is transmitted between devices. It serves as the communication channel that enables the exchange of information in a network. The medium can take various forms, such as copper wires, optical fibers, or wireless signals, depending on the type of network and communication technology used. Essentially, the medium is the means by which data travels from one point to another within a computer network.


3. Network Devices

Network Devices are the devices that connect the end devices together to allow them to communicate. These are components that form the essential building blocks of a computer network. Again, these devices enable communication and the transfer of data between computers and other devices within the network. Examples of network devices include routers, switches, hubs, and modems. Each of these devices plays a specific role in facilitating the flow of information across the network, ensuring efficient and reliable communication between connected devices.


4. Message

A Message is the information or data that travel over the medium. It is the basic element of communication in a network and contains information that is exchanged between the sender and the receiver. Messages can take various forms, such as text, files, commands, or any other type of data that can be transmitted electronically. The transmission of messages enables communication and data exchange between different components of the network, facilitating the sharing of information and the operation of various networked applications.


5. Receiving Device

Receiving Devices are also used to communicate with one another. In the context of a computer network, it is any device that is designed to receive and process data or information transmitted over the network. This can include computers, smartphones, tablets, printers, or any other device capable of receiving and interpreting data sent over the network. In simple terms, a receiving device is one part of the network that takes in information from the network for further use or display.


What is the difference between Client and Server?

In a computer network, the terms "client" and "server" refer to two distinct roles that devices play in their interaction. Here's a brief explanation of the differences:

1. Client:
  • A client is a device or software application that requests services or resources from a server.
  • Clients initiate requests for information or services and wait for the server to fulfill those requests.
  • Examples of clients include web browsers, email clients, and file transfer programs.
  • Clients are typically end-user devices, such as computers, smartphones, or tablets.
2. Server:
  • A server is a device or software application that provides services or resources to clients.
  • Servers respond to requests from clients by providing the requested information or performing a specific task.
  • Examples of servers include web servers (which host websites), email servers, and file servers.
  • Servers are usually more powerful and have resources dedicated to providing services to multiple clients simultaneously.

(Network Traffic Concepts)

What is a Bandwidth?

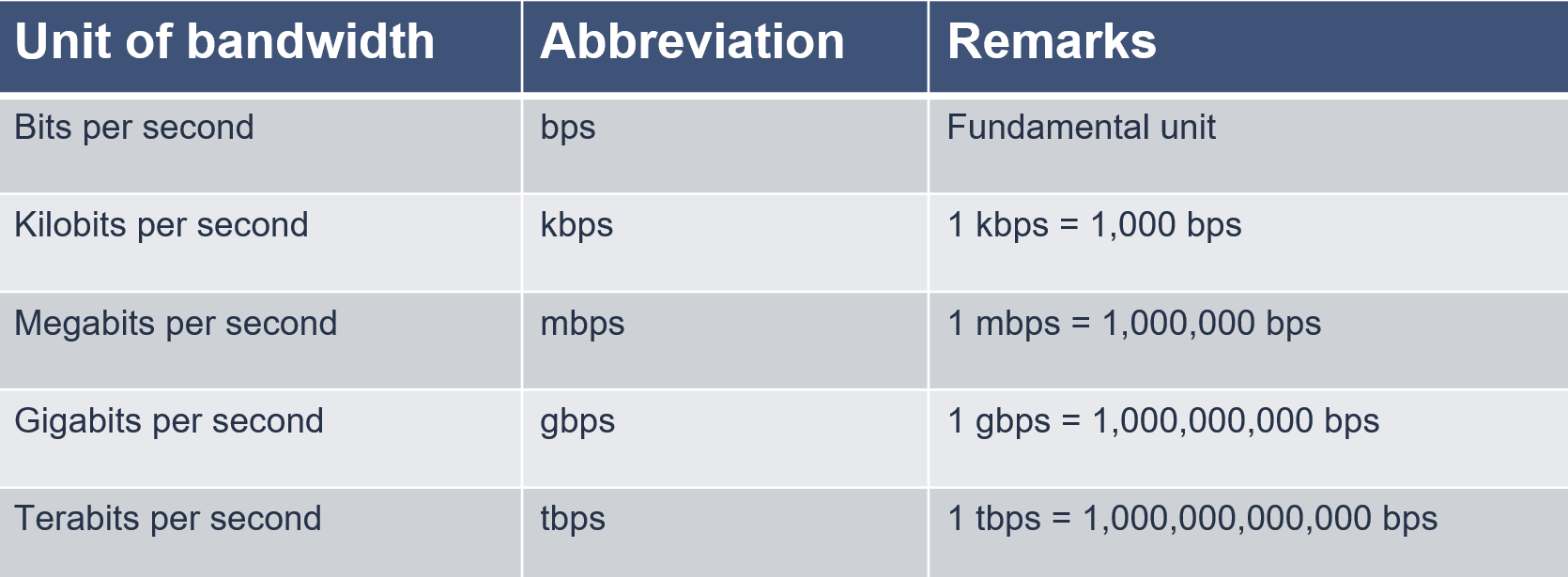

In the context of network traffic, bandwidth refers to the maximum rate of data transfer across a network. It is a measure of how much data can be transmitted in a given amount of time. Bandwidth is often expressed in bits per second (bps), kilobits per second (kbps), megabits per second (Mbps), or gigabits per second (Gbps), depending on the speed of the network.


Key Points (for bandwidth):
  1. Data Transfer Rate: Bandwidth represents the capacity of a network connection to transmit data. It is essentially the maximum speed at which data can be sent or received.
  2. Higher Bandwidth, Faster Transfer: A network with higher bandwidth can transfer more data in a shorter time, leading to faster and more efficient data transmission.
  3. Upstream vs. Downstream Bandwidth: Bandwidth can be asymmetric, meaning that the upstream (data sent from the client to the server) and downstream (data sent from the server to the client) speeds may differ. For example, in many consumer broadband connections, the downstream bandwidth is higher than the upstream bandwidth.
  4. Shared Resource: In shared networks, such as the internet, bandwidth is a shared resource among multiple users. The available bandwidth is divided among users, and heavy usage by one user may affect the performance experienced by others.
  5. Measuring Capacity: Bandwidth is often measured in bits per second, but larger units like kilobits, megabits, and gigabits are commonly used to describe the capacity of modern networks.
  6. Latency vs. Bandwidth: While bandwidth is about the volume of data that can be transmitted, latency is about the delay in the transmission. Low latency is crucial for real-time applications, while high bandwidth is essential for transferring large amounts of data quickly.
